Products

DracoDrum 'Drop In' Drums

The concept was to come up with a product that could drop in without a single modification to the original filter. It then had to be extremely easy to "wire up" and commission and then it had to be easy to maintain, with everything easily replaceable. It also had to have all the features needed to make a drum work but keep it within the chassis of the drum to allow it to be installed in almost any situation, no matter how tight.

All Models

  • The remotely sited controller has start / emergency stop buttons and a knob allowing you to change the length of wash. LED indicator shows the length of time between washes in minutes. It also has 2 leads - one to plug in to the mains supply (110v and 230v, auto selectable) and one to plug in to the drum. Status of the unit is via 4 colour coded LEDs. We didn't think we could make it any simpler than that.
  • Low voltage, sealed water valves and drive units utilising an extremely low geared direct drive system mean that only 12 volts is anywhere near your pond water.
  • Designed to run without a noisy and power hungry wash pump in most circumstances (they are available if required). On standby the unit can use less than 12 watts and in full wash mode, use 35 watts. It is entirely possible to run it off a car battery for prolonged periods of time.
  • 58 micron stainless steel screen.

Origin

  • Fits in ERIC filter's 300 series Nexus units and single inlet vortexes over 33 inches in Diameter.
  • Dimensions – 495mm wide x 443mm long x 540mm depth
  • Height above water level - 180mm
  • Capacity – 3,700 Imp gallons per hour / 16,800 litres per hour (in gravity mode, pump fed less 25%)
  • Pond Volume – Approx 7,500 UK gallons
  • single Inlet
  • RRP £1041.67 (excluding local sales tax)
Origin
Origin

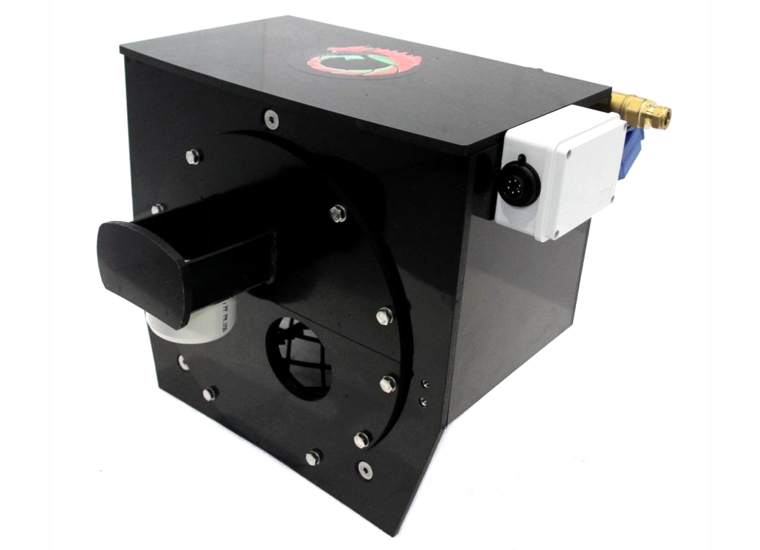

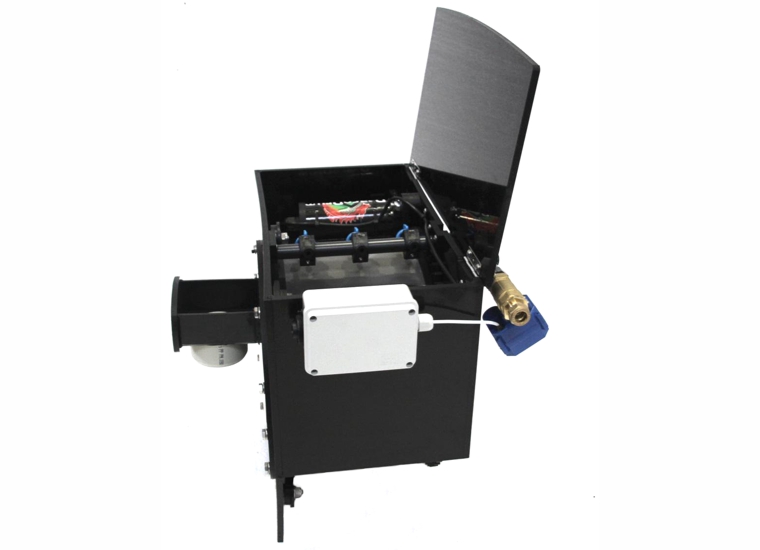

Draco 2

With high demand from people agreeing with what we set out to achieve with the Origin unit we adapted it to create the Draco2.

  • Fits in Nexus 200 series units, vortexes between 24" & 33" and multibays.
  • Dimensions – 450mm wide x 396mm long x 420mm depth
  • Height above water level – 170mm
  • Capacity – 2,450 Imp. Gallons per hour / 11,100 litres per hour (in gravity mode, pump fed less 25%)
  • Pond Volume – Approx 4,000 UK gallons
  • Single Inlet
  • RRP £958.33 (excluding local sales tax)
Draco 2
Draco 2

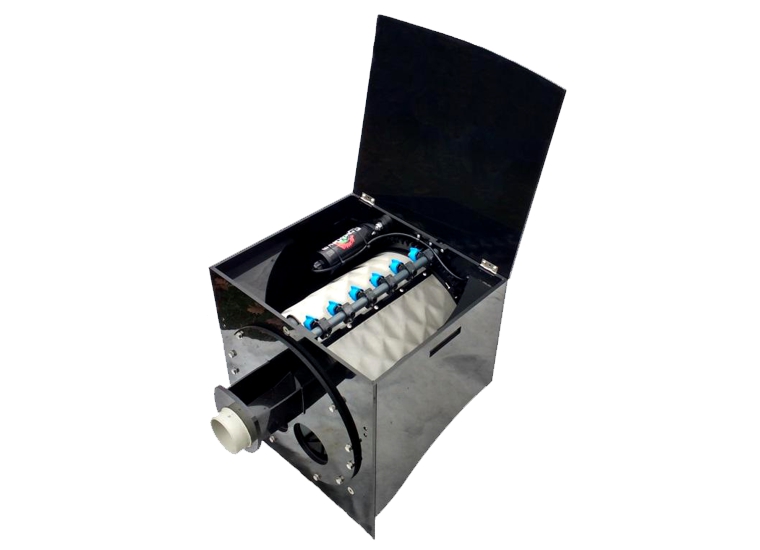

Origin 25

The Origin25 was created for people with increased flow, larger filter chambers and those wanting to have twin inlets.

  • Fits large vortex, concrete chamber type set-ups
  • Dimensions – 495mm wide x 542mm long x 540mm depth
  • Capacity – 5,500 Imp. Gallons per hour / 25,000 litres per hour (in gravity mode, pump fed less 25%)
  • Pond Volume – Approx 10,000 UK gallons
  • Twin Inlet
  • RRP £1,250 (excluding local sales tax)
Origin 25
Origin 25

The Solum - Standalone Range

The engineering and understanding of how filtration works was developed to produce the stand alone range of filters. As with the ‘Drop-in’ range these have some unique features to help eliminate deadspots that are usually found in standalones.

These units are pretty enough for you not to want to hide them away.

All Models

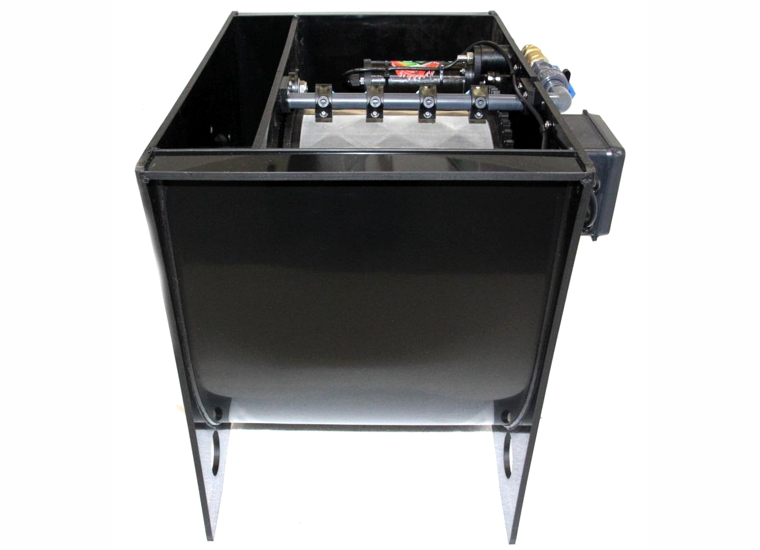

Solum 16

  • Dimensions – 610mm wide x 560mm long x 571mm depth
  • Height above water level - 180mm
  • Capacity – 3,000 Imp gallons per hour / 16,000 litres per hour (in gravity mode, pump fed less 25%)
  • Pond Volume – Approx 7,500 UK gallons
  • Twin 4” inlet and outlets
  • Easily removable Bypass plates
  • RRP £1,075 (excluding local sales tax)
Solum 16
Solum 16
Solum 16

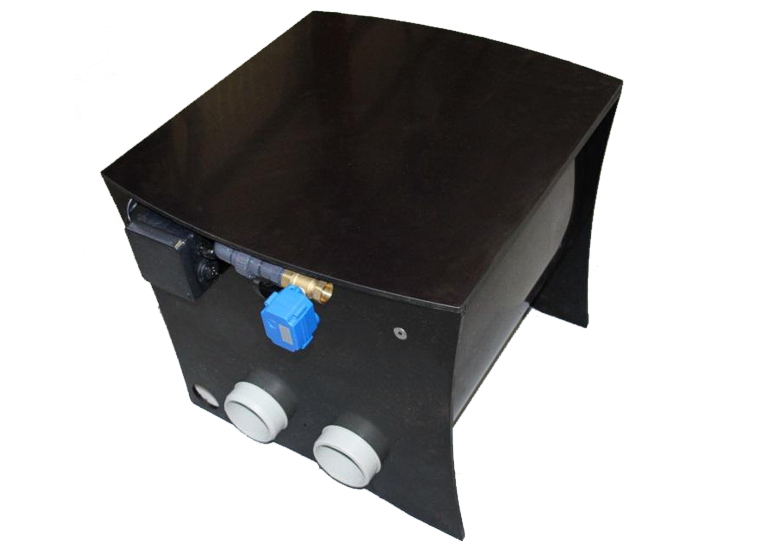

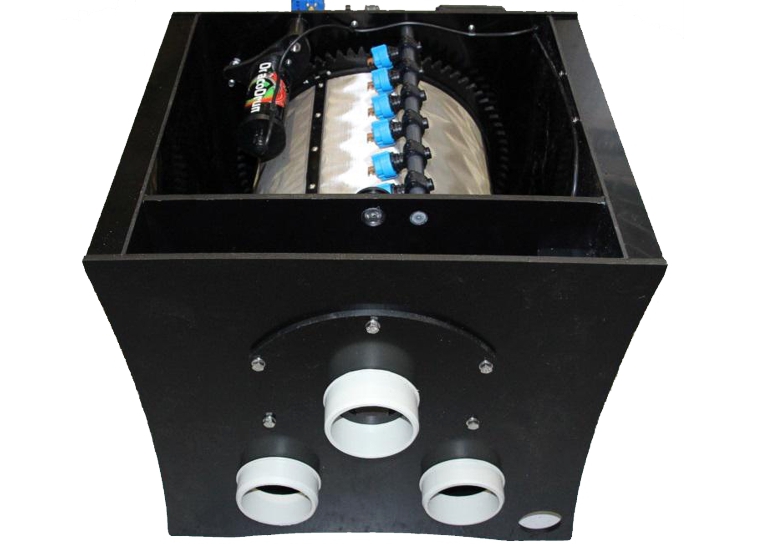

Solum 25

  • Dimensions – 610mm wide x 677mm long x 571mm depth
  • Height above water level – 180mm
  • Capacity – 5,500 Imp. Gallons per hour / 25,000 litres per hour (in gravity mode, pump fed less 25%)
  • Pond Volume – Approx 10,000 UK gallons
  • Twin 4” inlet and outlets
  • Easily removable Bypass plates
  • RRP £1,291.67 (excluding local sales tax)
Solum 25
Solum25
